Spreader beam - lifting beam
We supply spreader beams with either adjustable or fixed lifting points—always backed by a lifetime warranty. We deliver quickly directly to your site, for lifting loads of up to 200 metric tons.
The object to be lifted is secured using lifting chains, slings, or custom-designed lifting points. Our spreader beams are often customized to meet customer needs, so let us know what you need, and we’ll design a spreader beam that’s just right for you.
1. OptiBeam - Adjustable lifting beam (WLL 1,000–5,000 kg)
One tool – many uses.

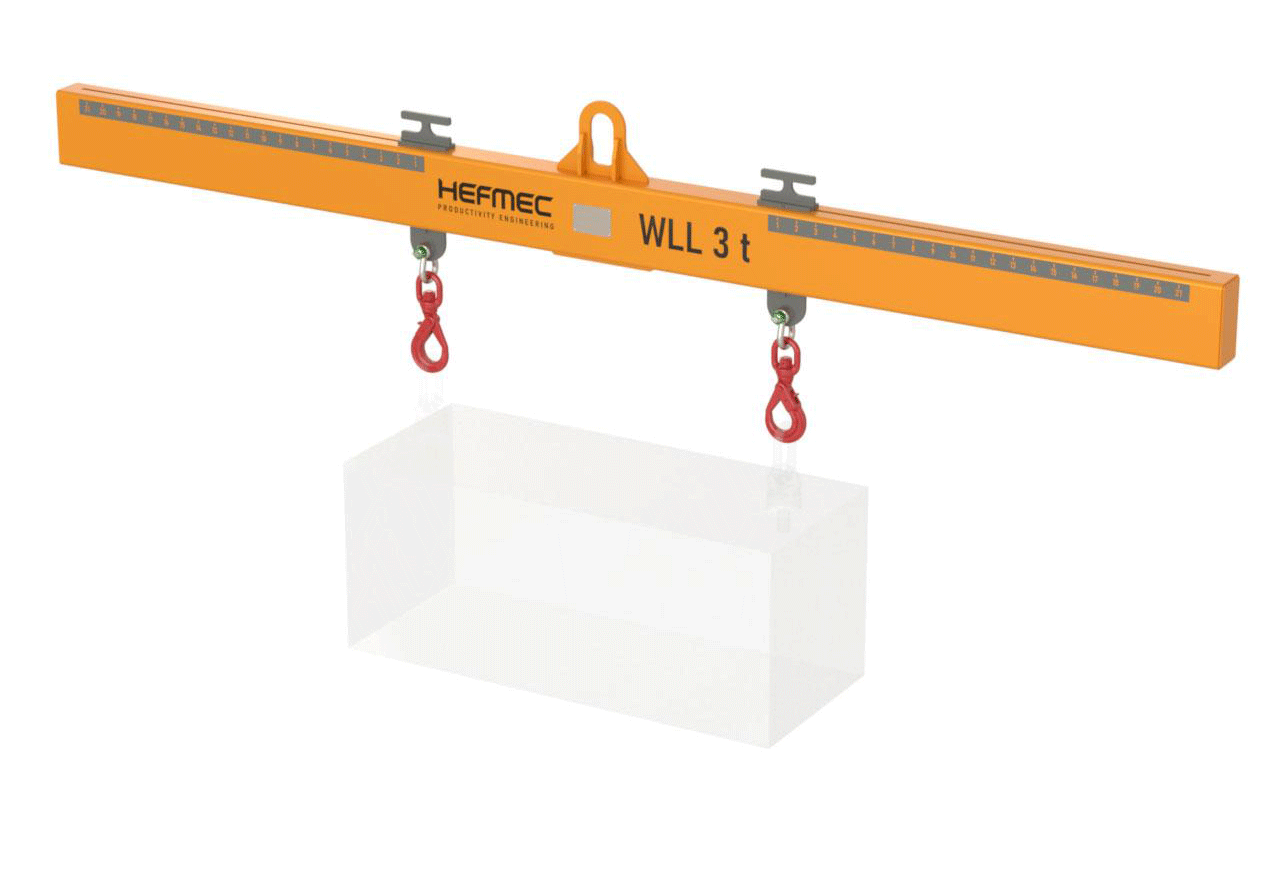

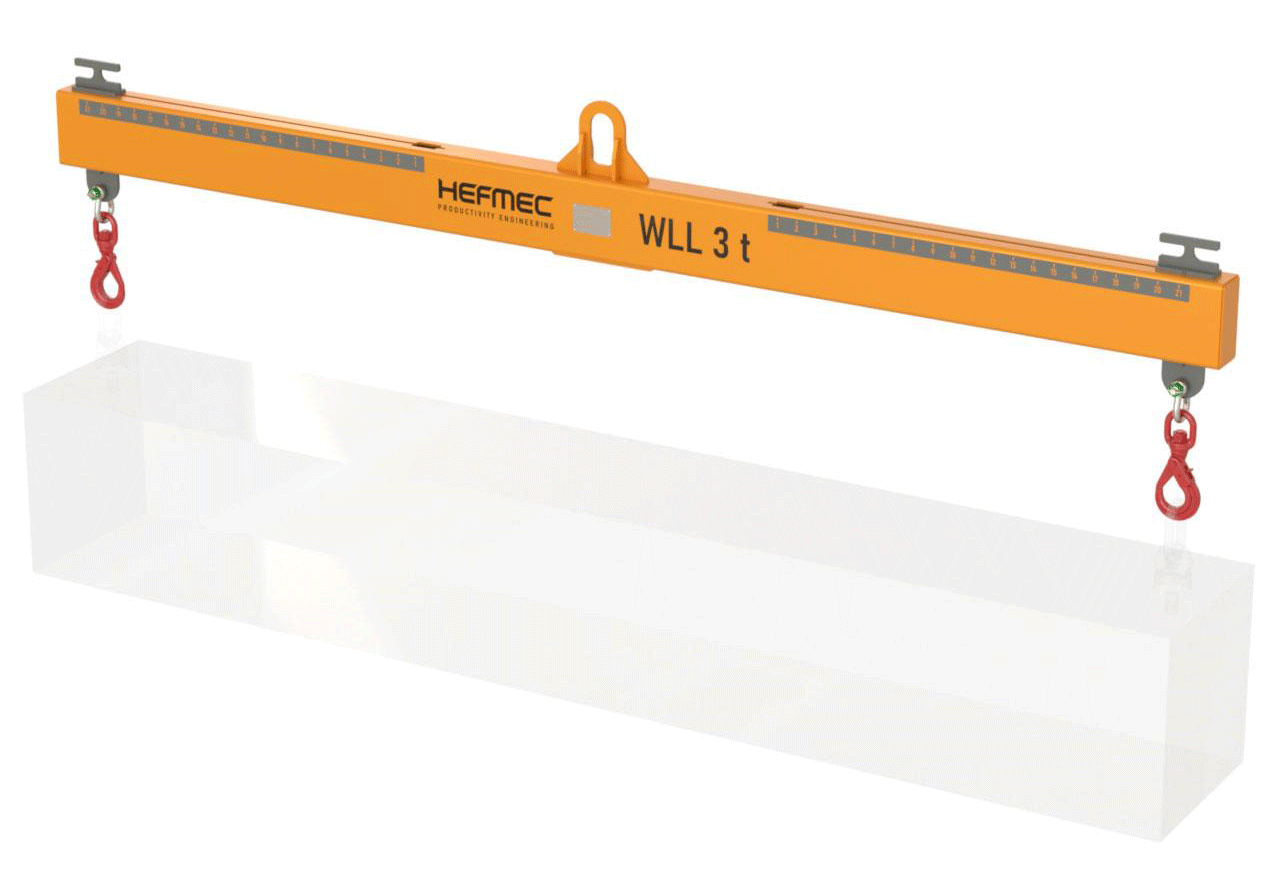

OptiBeam is a lightweight and easy-to-handle adjustable lifting beam suitable for a wide range of lifting tasks in various work environments. Lifting points can be adjusted quickly without tools, and the measuring scale integrated into the beam makes it easy to make precise and safe adjustments.
OptiBeam is suitable for lifting machine parts, steel nipples, concrete beams or other long loads.
Product images
Screenshot
Details

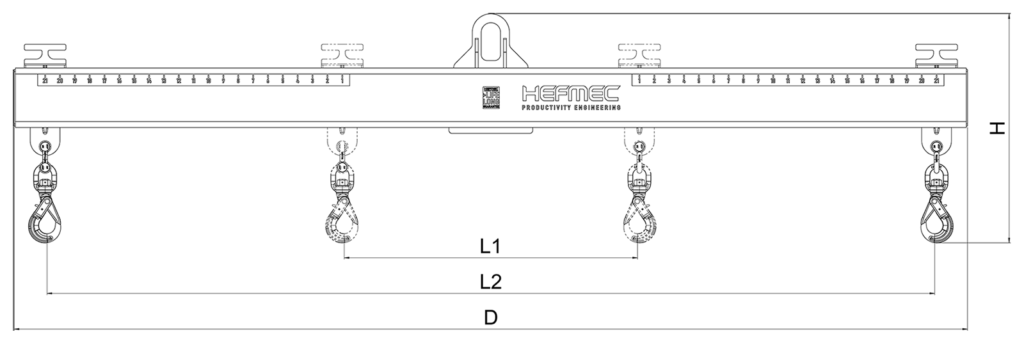

OptiBeam is available in different sizes for loads from 1000 kg to 5000 kg. In the table below you can see the dimensions, maximum liftable mass (WLL) and pricing of the different options.
Prices shown are subject to VAT 0%.
NOTE: The Optibeam can also be designed with three lifting points, and its dimensions can be customized to meet customer needs.
| WLL | Lenght D (mm) | Width L1 (mm) | Width L2 (mm) | Height H (mm) | Weight | Price (vat 0 %) |
|---|---|---|---|---|---|---|
| 1000 kg | 1200 | 500 | 1000 | 670 | 40 kg | 2 550 € |
| 2200 | 1000 | 2000 | 670 | 50 kg | 2 750 € | |
| 3200 | 1000 | 3000 | 670 | 65 kg | 2 850 € | |
| 5200 | 2000 | 5000 | 670 | 95 kg | 2 950 € | |
| 3000 kg | 1200 | 500 | 1000 | 710 | 65 kg | 2 750 € |
| 2200 | 1000 | 2000 | 710 | 95 kg | 2 900 € | |
| 3200 | 1000 | 3000 | 710 | 130 kg | 3 100 € | |
| 5200 | 2000 | 5000 | 710 | 195 kg | 3 300 € | |
| 5000 kg | 1200 | 500 | 1000 | 710 | 65 kg | 2 900 € |
| 2200 | 1000 | 2000 | 710 | 95 kg | 3 100 € | |
| 3200 | 1000 | 3000 | 710 | 130 kg | 3 400 € |

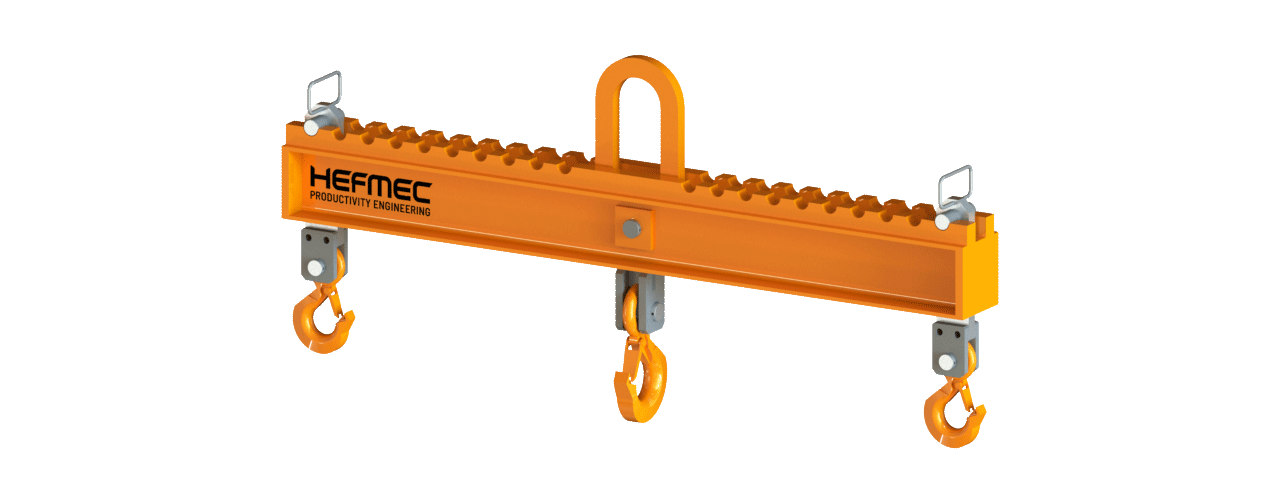

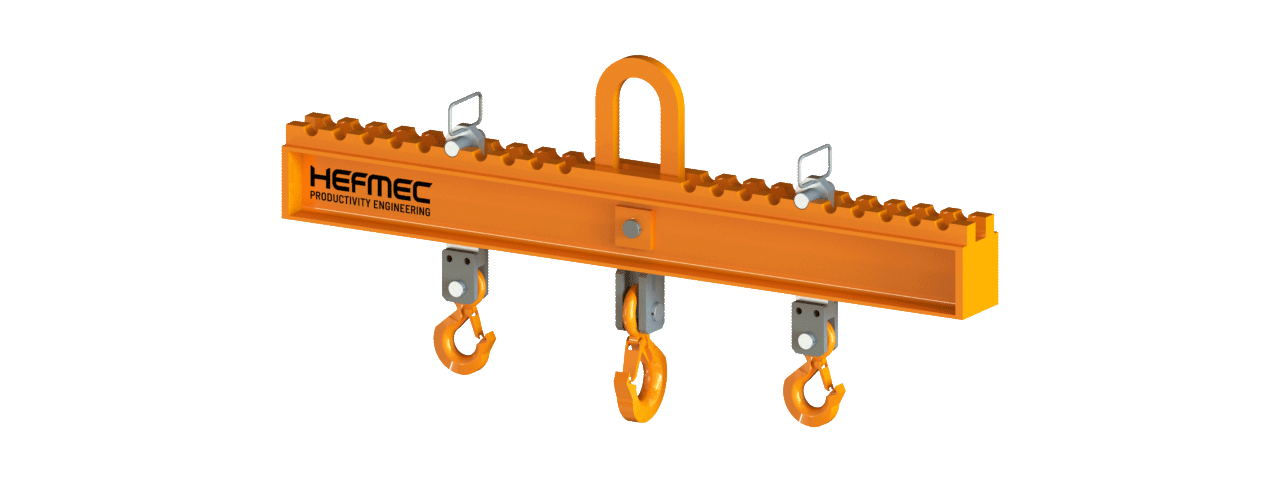

2. OptiBeam HEAVY - Adjustable lifting beam (WLL >5,000 kg)
For lifting heavy objects.

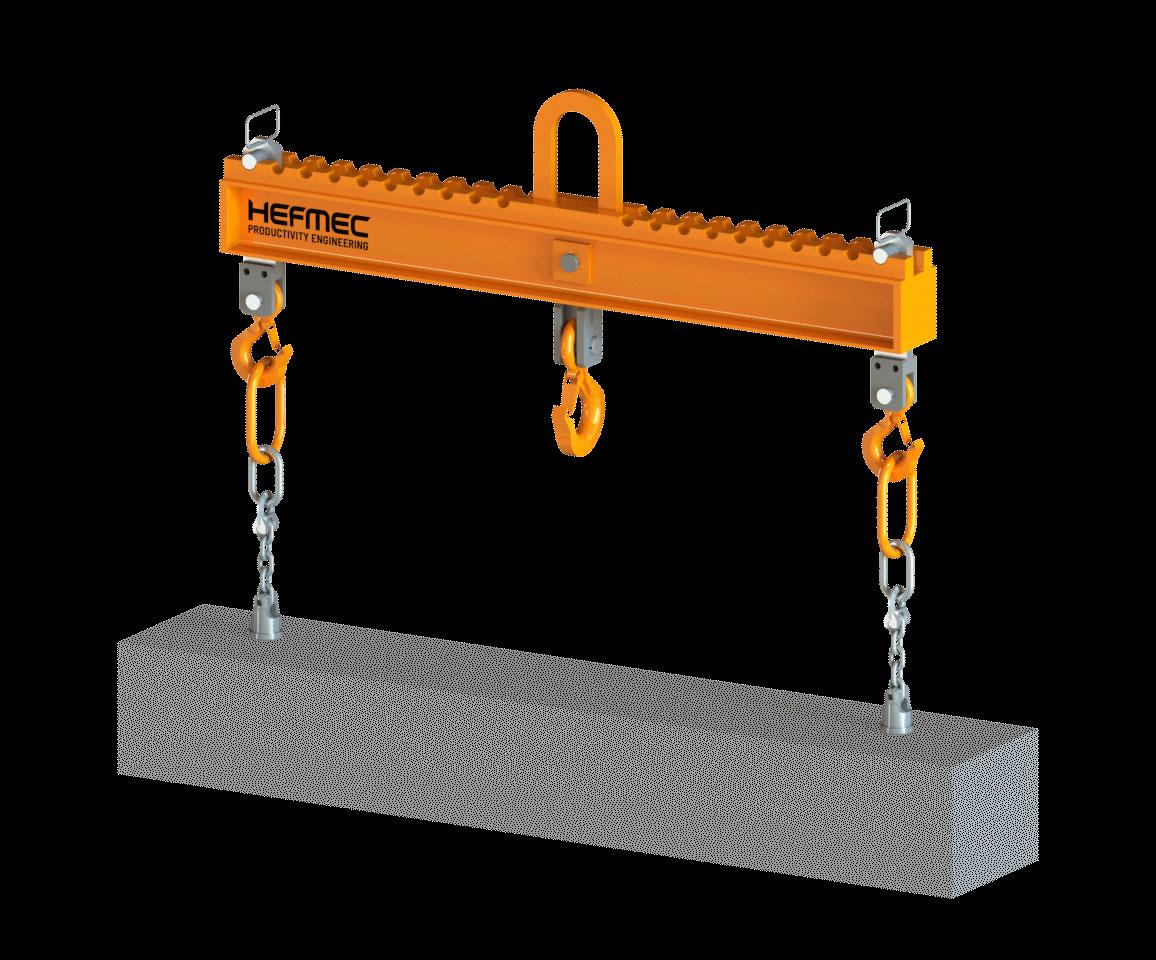

OptiBeam Heavy has been developed for demanding applications where pieces over 5 tonnes are handled. Adjustable lifting points and a reinforced profile allow the lifting beam to be precisely adapted to heavy loads of different shapes. This improves work safety and makes handling much easier. The product is always tailored to the customer’s needs.
OptiBeam Heavy is suitable for prefabricated construction, the steel industry and for lifting large machine parts – wherever the mass to be lifted is large and precision is crucial.

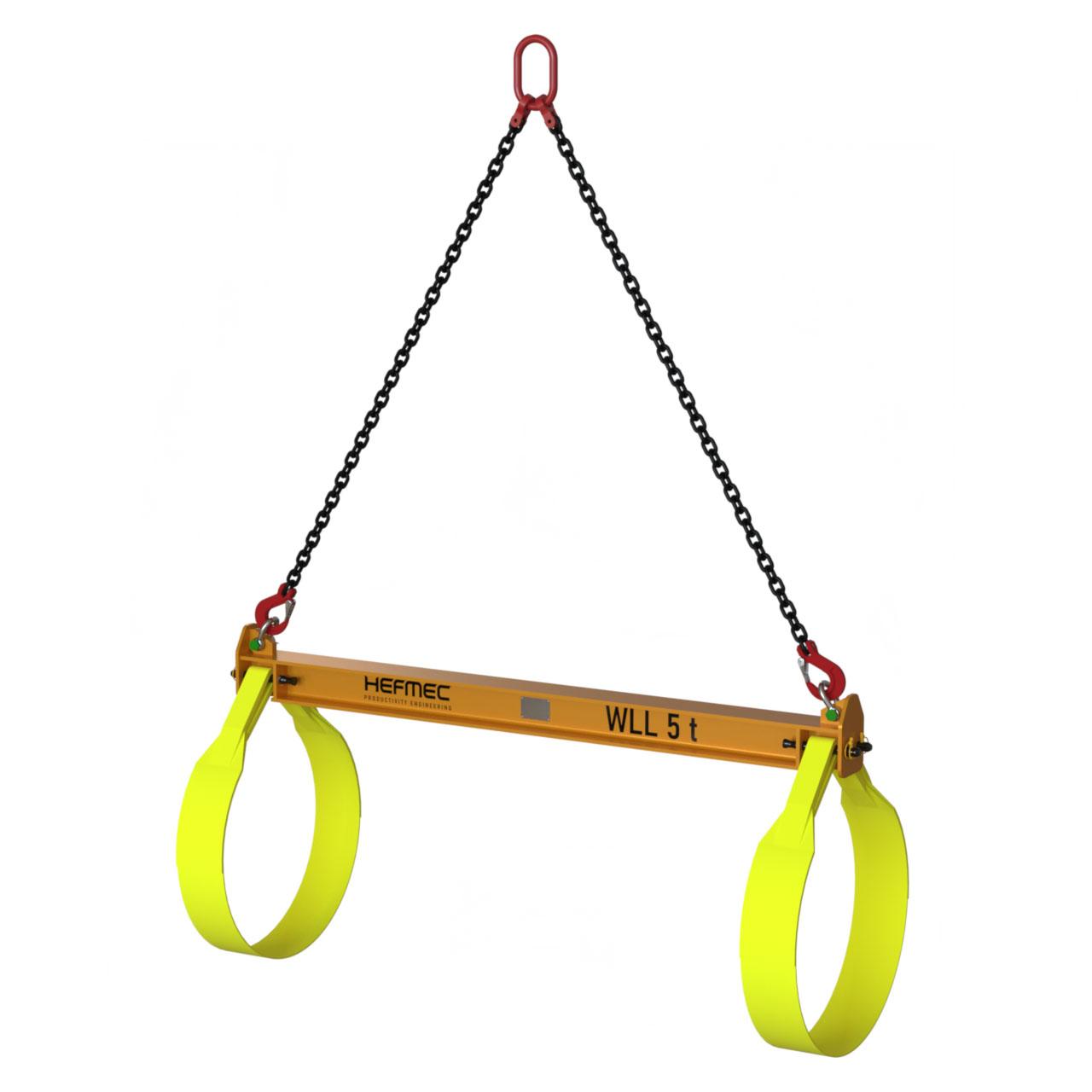

3. FIXEDBEAM - Spreader Beam (WLL 1,000–200,000 kg)
The Fixedbeam is a suitable solution for applications where the objects to be lifted are of the same size and shape. Typical applications include pipes, cylinders and concrete products.
The fixed lifting point and standardised design make use quick and repeatable. The FixedBeam is suitable for both small and large masses – from 1 tonne up to 200 tonnes.
The choice of materials, hanging height, locations of lifting links and fixing solutions are tailored to the application.
NOTE: The products shown are examples of products we have customized for a customer. If necessary, Hefmec designs each lifting accessory according to the customer’s needs.
Spreader Beam - Product Description
Lifting booms are used to lift pieces with the lifting points aligned in a straight line.
In the adjustable versions, the mobility of the lifting points allows products of different sizes to be lifted with a single tool. Our products have been used to lift very heavy items.
In low spaces, the lifting points can be designed so that the lifting points can directly grip the object to be lifted. This saves on the lifting height. Our products thus save on procurement costs and production costs.
Hefmec products are always made of high quality materials that guarantee long life and maximum safety. The products are designed to withstand the harsh industrial environment and come CE marked to ensure compliance with standards.
- Lifetime guarantee
- CE marking
- Instructions for use and maintenance, declaration of conformity and inspection report included.
- Lifting safety is an essential part of the use of lifting accessories. For more information on lifting safety practices, visit the Centre for Safety at Work website.
Order product
Please contact the product manager, and we’ll design a lifting accessory tailored specifically to your needs.
